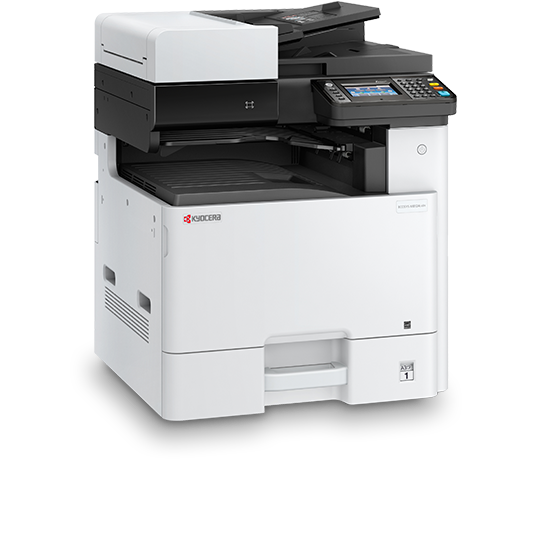

mfp-540x540-angled-ecosysM8124cidn

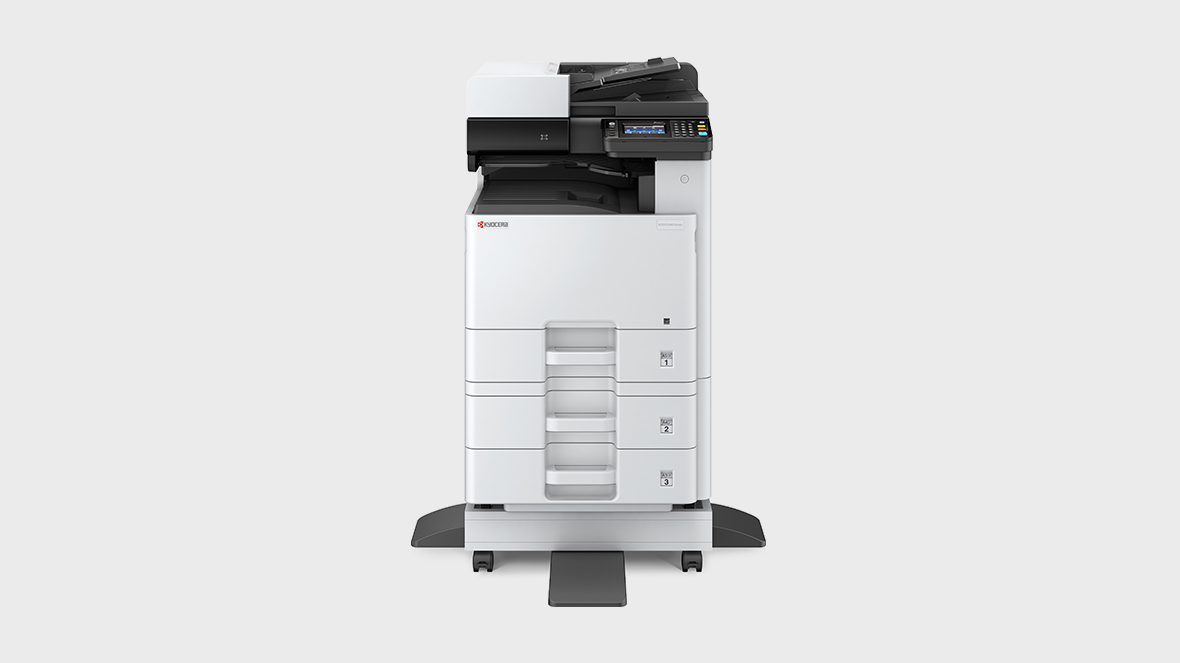

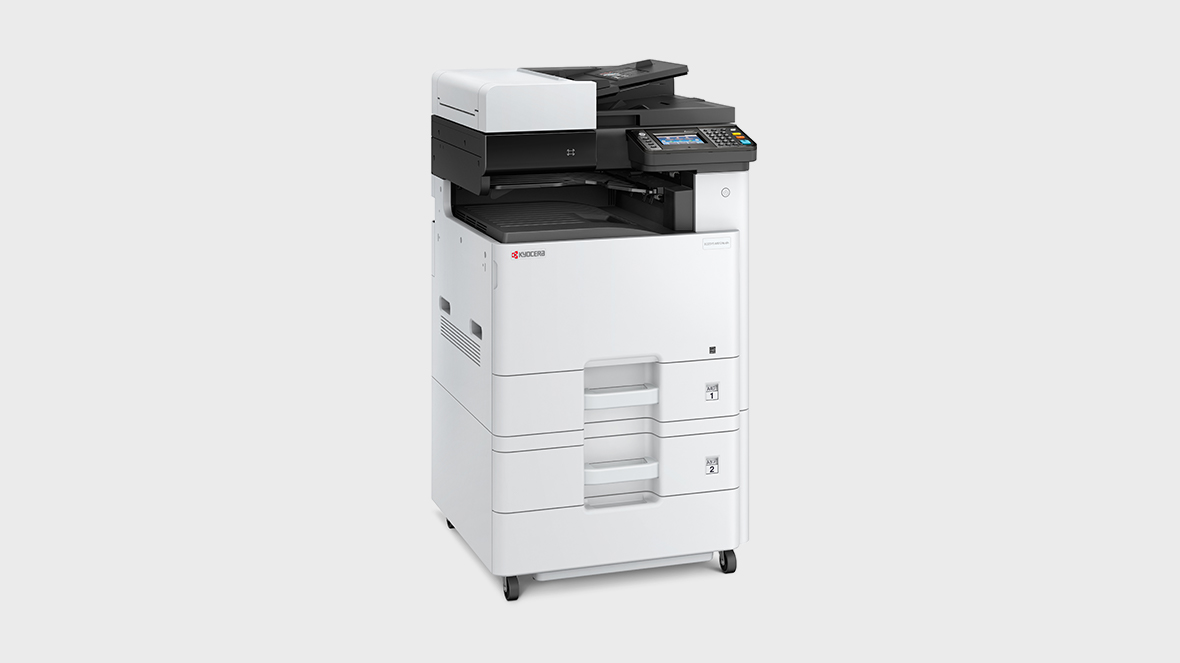

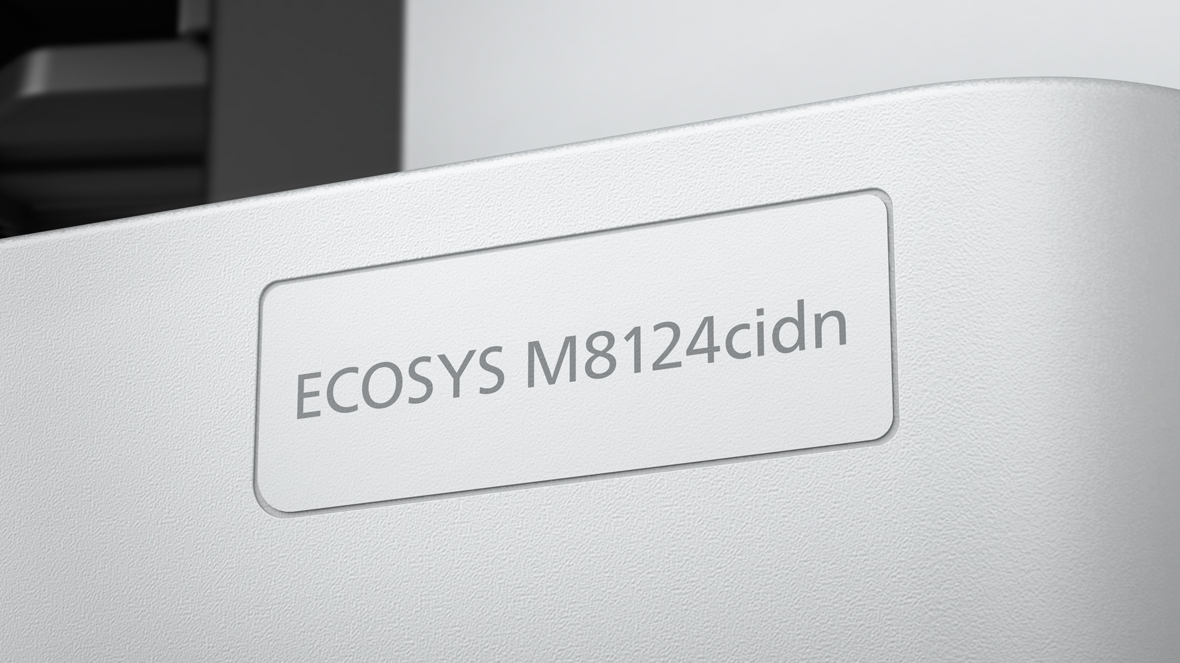

ECOSYS M8124cidn

En A3/A4 multifunktionsprodukt idealisk för små arbetsgrupper.

  • Upp till 24/12 sidor för A4/A3 i minuten.
  • Högproduktiv och professionell utskrift, kopia, färg scanning och fax (valfri) funktion.
  • Låga installations och driftskrav.

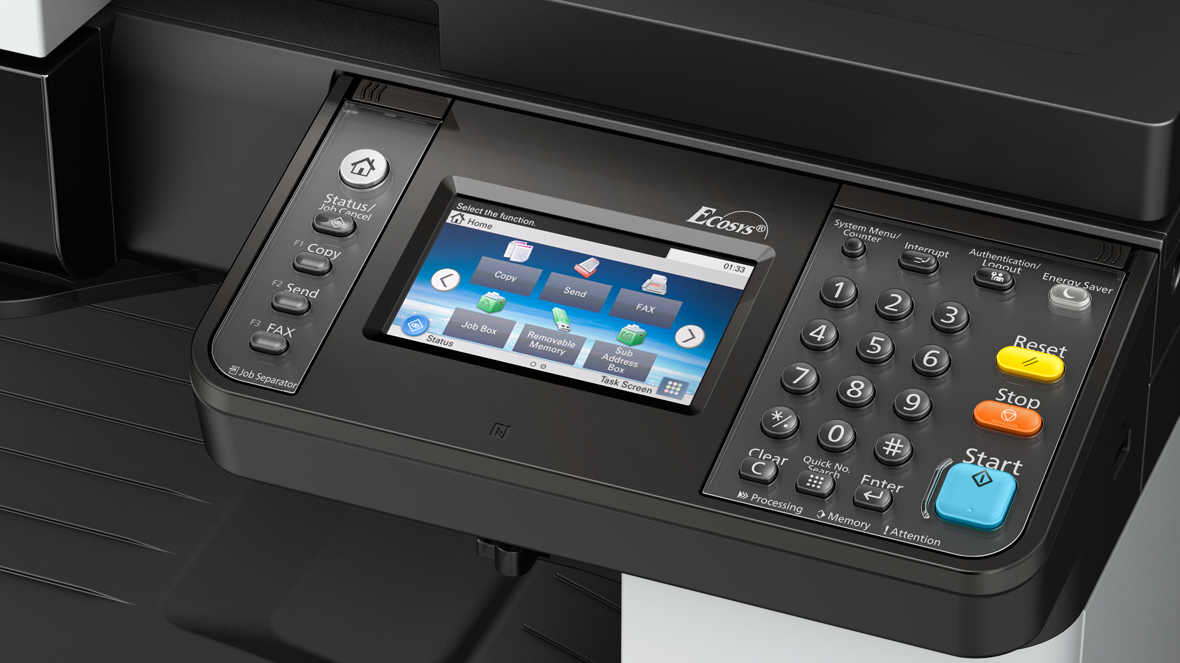

  • Lättanvänd touch screen panel med wizard navigation.
  • Låg elförbrukning sparar energi.
  • Long-life komponenter ger en oöverträffad effektivitet och pålitlighet.
  • HyPAS™ plattformen ger möjligheter till kraftfulla skräddarsydda lösningar.
Hastighet
Hastighet

Upp till 24/12 sidor A4/A3 i minuten i färg och s/v

Upplösning
Upplösning

1200 x 1200 dpi (print) 600 x 600 dpi (scan/copy)

Mått (B x D x H)
Mått (B x D x H)

590 x 590 x 753 mm (with standard Document processor)

ECOSYS gör kontoret mer hållbart och mer effektivt.

En Kyocera-lösning har alltid miljön i åtanke och en ECOSYS-produkt har det mer än någon annan produkt på marknaden.

  • ECOSYS M8124cidn Drivrutiner
  • ECOSYS M8124cidn Dokumentation
  • ECOSYS M8124cidn Mjukvaror

Specifikationer

Allmänt
  • Allmänt
  • Pappershantering
  • Utskrift
  • Kopiering
  • Skanning
  • Fax

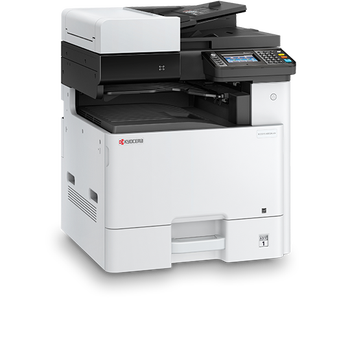

mfp-540x540-angled-ecosysM8124cidn
Typ
Multifunktionell färgskrivare för A4/A3 format
Hastighet
Upp till 24/12 sidor A4/A3 i minuten i färg och s/v
Uppvärmningstid
Ca 30 sekunder eller mindre.
Strömförbrukning
Sleep-mode: 0.5 W, Stand-by: 80 W, Copying/Printing: 510 W
Inmatningskapacitet
100-sheet multi-purpose tray, 60–256 g/m²: A3, A4, A5, A6, B5, Ledger, Letter, Legal, Folio, Custom (98 x 148 to 297 x 432 mm) 500-sheet standard universal paper cassette, 60–256 g/m², A3, A4, A5, B5, Ledger, Letter, Legal, Folio
Maximal inmatningskapacitet (med extrautr.)
1,600 sheets
Duplexenhet
Standard duplex unit: 60–256 g/m²
Utmatningskapacitet
Max. 280 sheets; 250 sheets face-down (Main Tray), plus 30 sheets (standard Job Separator Tray)
Dokumentmatare
Standard reversing document processor: 50-sheet, Simplex scan 45–160 g/m², Duplex scan 50–120 g/m², A3, A4, A5, B5, Letter, Legal, Custom (140x182 to 297x432mm)
Processor
ARM Cortex-A9 Dual core1.2 GHz
Teckensnitt
101 outline fonts (PCL 6, KPDL3, Windows Vista), 1 bitmap font, 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)
Funktioner
Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality
Operativsystem
All current Windows operating systems, Mac OS X Version 10.5 or higher, UNIX LINUX , as well as other operating systems on request.
Max. originalstorlek
A3/Ledger
Löpande kopiering
1 - 999
Zoomningsintervall
25 - 400 % in 1% steps
Förinställda förstoringsförhållanden
5 Reductions / 5 Enlargements
Bildanpassning
Text, photo, text + photo, Map, Printed document
Digitala kopieringsfunktioner
Scan-once-copy-many, sort, 2in1, 4in1, job reserve, priority print, program, auto duplex copy, split copy, continuous scan, auto cassette change (PF-470 or PF-471 is required), copy density control, Prevent Bleed-Through, ID card copy, Skip blank page
Funktion
Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan-to-USB Host, Network TWAIN, WIA, WSD scan
Skanningshastighet
b/w: 50 ipm (300 dpi, A4), Colour: 50 ipm (300 dpi, A4)
Scan features
Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip
Skanningsupplösning
200, 300, 400, 600 dpi (256 greyscales per colour)
Max. skanningsstorlek
A3/Ledger
Filtyp
PDF, PDF/A, JPG, TIFF, XPS, PDF/A-1a/b, PDF/A-2a/b/u, Encrypted PDF High Compresson PDF
Originalidentifiering
Text, photo, text + photo, light text, optimised for OCR
Kompatibilitet
ITU-T Super G3
Modemhastighet
Max. 33.6 kbps
Skanningshastighet
2.0 second or less
Överföringshastighet
Max. 33.6 kbps
Skanningsdensitet
Normal: 8 dot/mm x 3.85 line/mm, Fine: 8 dot/mm x 7.7 line/mm, Superfine: 8 dot/mm x 15.4 line/mm, Ultrafine: 16 dot/mm x 15.4 line/mm, Halftone: 256 gray scales
Max. originalstorlek
A3/Ledger
Funktioner
Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Tillbehör

Tillbehör
  • Tillbehör
  • Alternativ

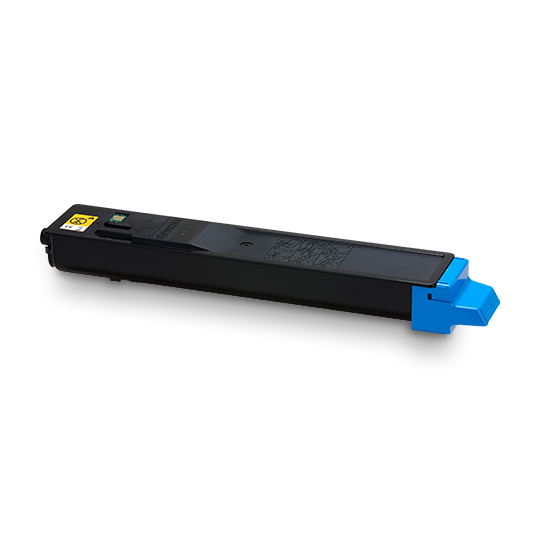

TK-8115C
Mikrofin cyan toner för 6000 A4-sidor enligt ISO/IEC 19798 Kapaciteten för starttonern är 1500 sidor cyan enligt ISO/IEC 19798

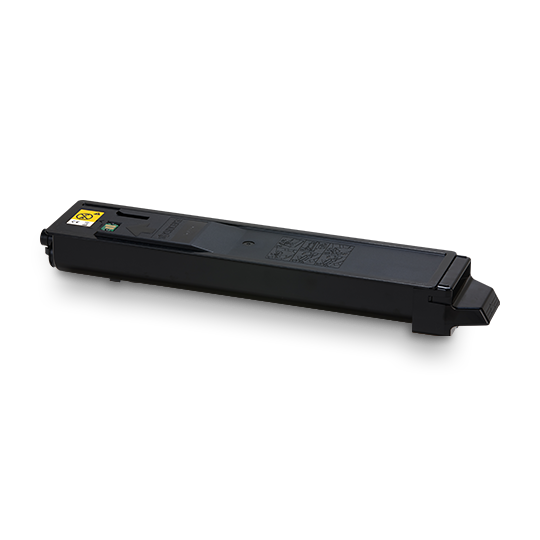

TK-8115K
Mikrofin svart toner för 12000 A4-sidor enligt ISO/IEC 19798 Kapaciteten för starttonern är 3000 sidor svart enligt ISO/IEC 19798

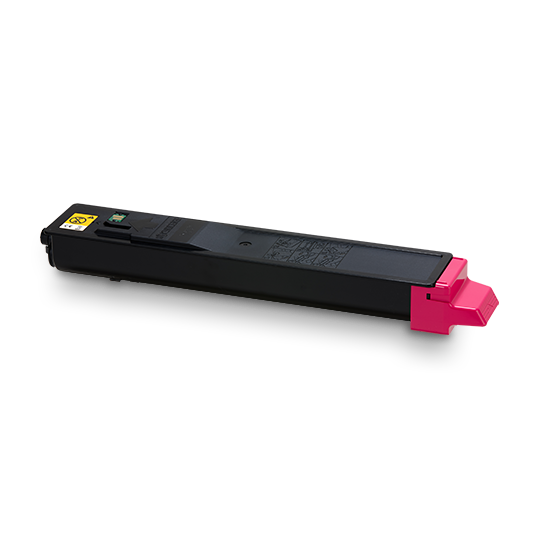

TK-8115M
Mikrofin magenta toner för 6000 A4-sidor enligt ISO/IEC 19798 Kapaciteten för starttonern är 1500 sidor magenta enligt ISO/IEC 19798

TK-8115Y
Mikrofin gul toner för 6000 A4-sidor enligt ISO/IEC 19798 Kapaciteten för starttonern är 1500 sidor gul enligt ISO/IEC 19798

CB-470
Wooden cabinet

CB-472
Skåp

Data Security Kit (E) AC
i linje med säkerhetsnivå EAL3

Fax System 13
Super G3-fax, nätverksfax

HD-6
32 GB SSD Hårddisk för enkel dokumenthantering

HD-7
128 GB SSD Hårddisk för enkel dokumenthantering

IB-36
Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-50
Gigabit-Ethernet-kort 10BaseT/100BaseTX/1000BaseT

IB-51
Trådlöst LAN-gränssnitt (802.11b/g/n)

KYOmulticode SD 3
Innehåller alla funktioner hos PCL Barcode Flash plus Unicode typsnitt ”Andale Mono World Type” vilket gör det möjligt att skriva ut Asiatiska typsnitt (Japanska, Koreanska, modern och traditionell Kinesiska)

MD3-1024
1024 MB Minnesuppgradering

MDDR3-2GB
2048 MB Minnesuppgradering

PCL Barcode SD
Adderar en- och två-dimensionella streckkoder till KYOCERA produkter (inklusive de maskinläsbara typsnitten OCR-A, OCR-B)

Scan extension Kit (A) AC
Skanna till sökbara PDF-filer (inbyggd OCR)

Skydd för utskrivet dokument
Typ A

UG-33
Stöd för ThinPrint
